CV Products Aluminum Drive 3 bolt 3.3" Hub Sheeve Mandrel 2.65"


  • Image 1

  • Image 2

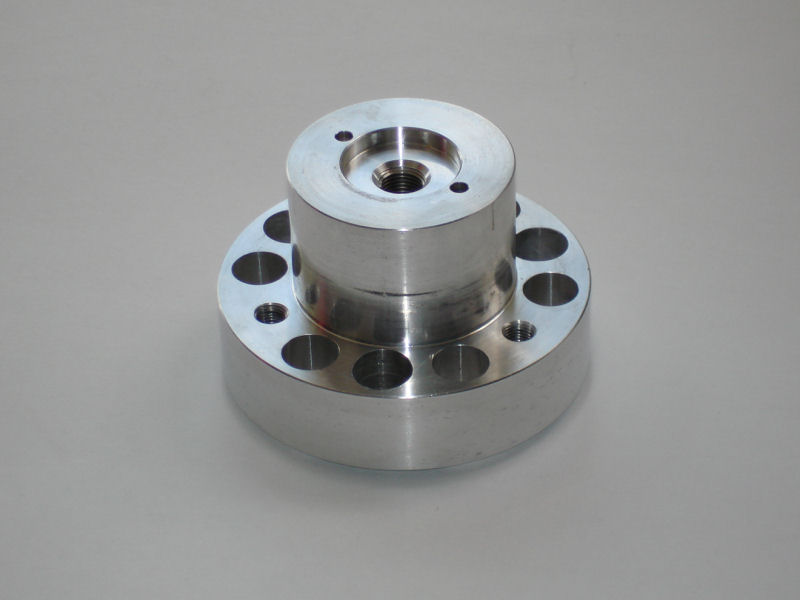

This CV Products Drive Hub Mandrel is machined from solid billet aluminum. This unit is made to accept sheeves and shims to facilitate proper belt alignment. This hub also uses the CV Products Twin Pin pulley design at the end of the hub to add additional pulleys with a hat washer and a bolt to retain the additional pulleys on the mandrel. Pulleys can be added in many configurations to suit your needs. The sheeves and shims are available in our other listings and will bolt directly to the hub independent of the Twin Pin accessories. We stock a large number of new and used CV pulleys that can be used with this mandrel, including v-groove sheeves, serpentine and HTD & Gilmer style dry sump pulleys. We also stock spacers of different thicknesses to help adjust pulley alignment where necessary.

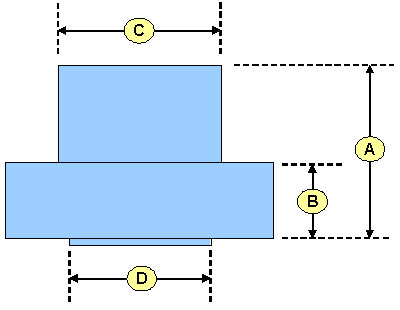

A = 2.65"
B = 1.050"
C = 2.50"
D = 2.275"

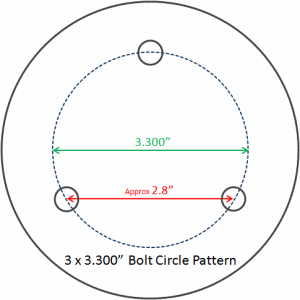

p1.gif 3x33-hub-pattern-med.gif
